RRS 30 Walkie Reach Stacker Pallet Stacker Truck

Fixed Baselegs
Sturdy, fixed baselegs provide added stability to help handle heavier loads.

Fixed Baselegs
Heavy-Duty Construction
Rugged design and modular components offer easier maintenance and a lower cost of ownership.

Heavy-Duty Construction
Lift/Lower Controls
Ergonomic handle provides proportional lift/lower controls for more precise load handling and reduced rack damage.

Lift/Lower Controls
Onboard Diagnostics
Simplify troubleshooting and enhance uptime with fully integrated self-checking capabilities.

Onboard Diagnostics
Efficient AC Traction
Accelerate, decelerate, and change directions smoothly for more responsive control.

Efficient AC Traction

Maximum Muscle And High Precision Delivered Economically

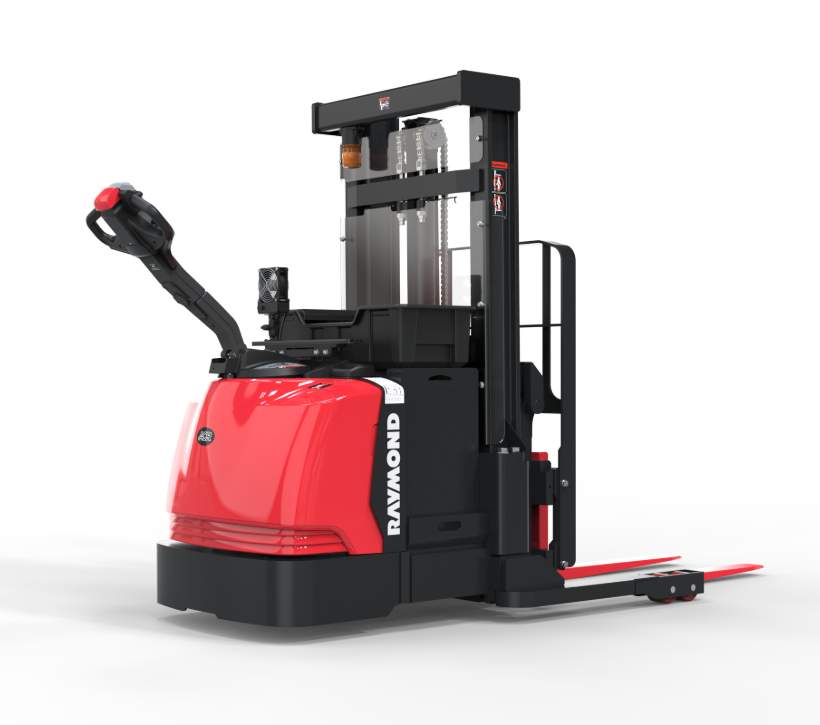

With the Raymond RRS walkie reach pallet stacker, do the job in less time for less money. This highly maneuverable pallet stacker is the perfect vehicle for retail storage areas, weight restricted elevators and floors, and other specialized operations. Trust the versatile RRS walkie reach to accomplish all of your staging and dock-to-stock needs.

Battery: 24 volt
Capacity: 3,000 lbs
Elevated Height: 189" maximum
Loaded Travel Speed: 3.5 mph
Unloaded Travel Speed: 3.5 mph

Cold Storage

Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test area to replicate the harshest conditions, testing and proving our systems in extreme cycles of freezing and thawing.
Narrow Aisle

With multiple combinations of heights, features, and capacities, Raymond 6410 Walkie Reach Stackers provide narrow aisle storage facilities with superior versatility to improve the utilization of warehouse space.
Palletless Handling

Whether you’re moving carpeting, steel, or other palletless loads, Raymond 6410 Walkie Reach Stackers can help you maximize space utilization, decrease damage to inventory, and increase productivity.
UL EE

Raymond 6410 Walkie Reach Stackers comply with Underwriters Laboratories (UL) 583, and are designed and manufactured to operate in classified locations as defined in NFPA 505. Type E and EE products are tested and certified by Underwriters Laboratories (UL).

Battery Discharge Indicator

The Battery Discharge Indicator with Lift Interrupt and Hour Meter prevents damage to the motor's electrical components caused by over-discharging the truck's battery.
Valve and Hose Package

For applications with unique handling needs, the Auxiliary Hydraulic Function Valve and Hose Package provides additional function for custom handling in addition to lift/lower, tilt and sideshift.
Sideshift

The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck.
Warning Lights

The RSS Walkie Straddle Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may find it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the RSS stacker truck in use.
