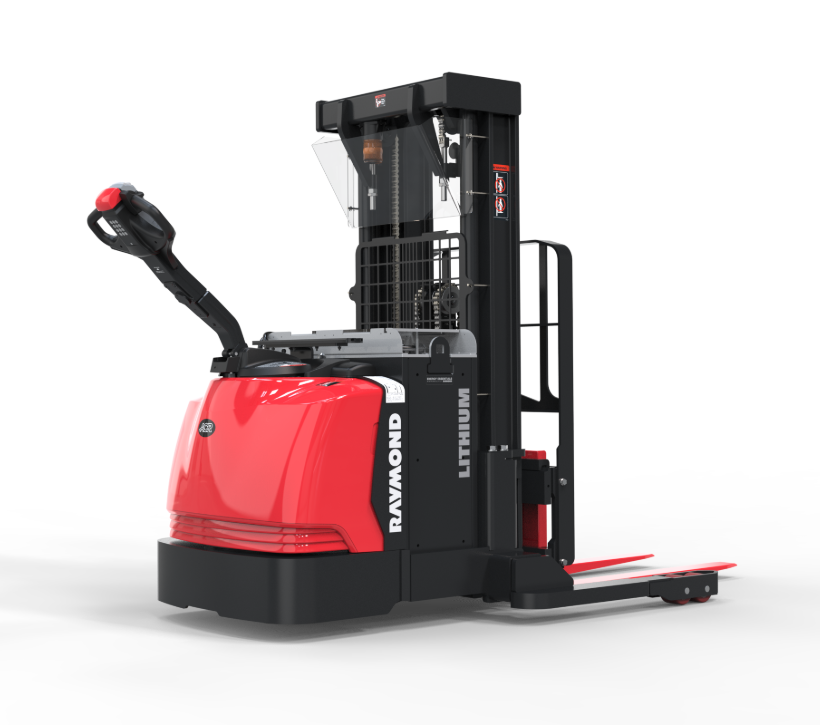

RSS 22/30/40 Walkie Straddle Stacker Pallet Stacker
-
-
Lift/Lower Controls
Ergonomic handle provides proportional lift/lower controls for more precise load handling and reduced rack damage.Lift/Lower Controls -
Mast Configurations
Choose from two- or three-staged masts to meet your application needs.Mast Configurations -
Onboard Diagnostics
Simplify troubleshooting and enhance uptime with fully integrated self-checking capabilities.Onboard Diagnostics -

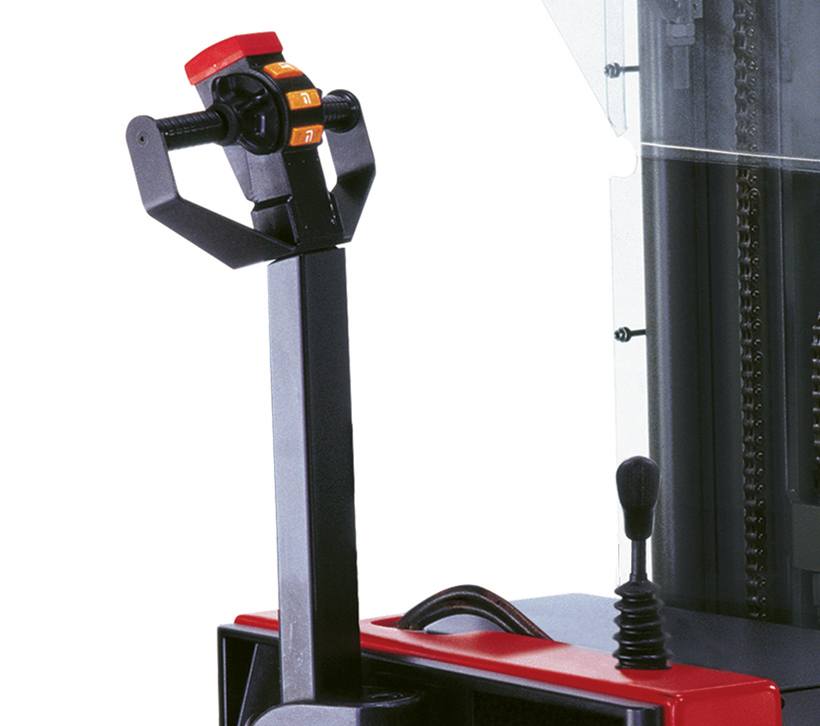

Secondary Controls
Secondary Lift/Lower controls are located on the chassis for more precise load placement.Secondary Controls -
Efficient AC Traction
Accelerate, decelerate, and change directions smoothly for more responsive control.Efficient AC Traction
The Power You Need. The Precision You Want.
With the Raymond RSS 22/30/40 walkie straddle stacker trucks, you can save valuable cycle time with drive-in-access to pallets and easy-to-operate controls. A load-sensing torsion bar suspension provides easier steering, and modular components and robust construction ensure your walkie pallet stacker will stand up to years of use.
- Battery: 24 volt
- Capacity: 2,200 lbs, 3,000 lbs, 4,000 lbs
- Elevated Height: 189" maximum
- Loaded Travel Speed: 3.5 mph
- Unloaded Travel Speed: 3.5 mph
Options
-

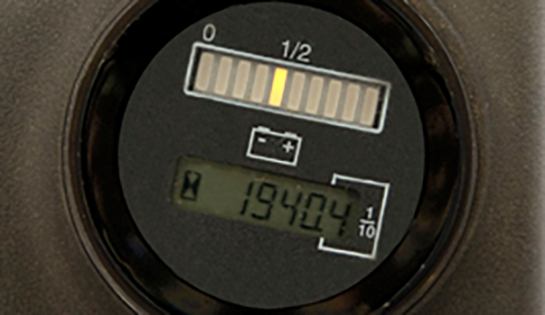

Battery Discharge Indicator
The Battery Discharge Indicator with Lift Interrupt and Hour Meter prevents damage to the motor's electrical components caused by over-discharging the truck's battery. -

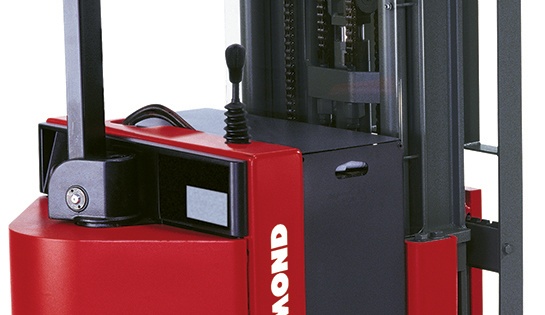

Valve and Hose Package
For applications with unique handling needs, the Auxiliary Hydraulic Function Valve and Hose Package provides additional function for custom handling in addition to lift/lower, tilt and sideshift. -

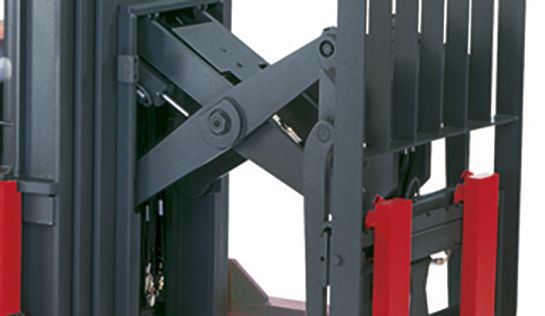

Sideshift
The sideshift function provides sideways movement of the carriage permitting a load to be picked up or put away even if it is not perfectly aligned with the truck. -

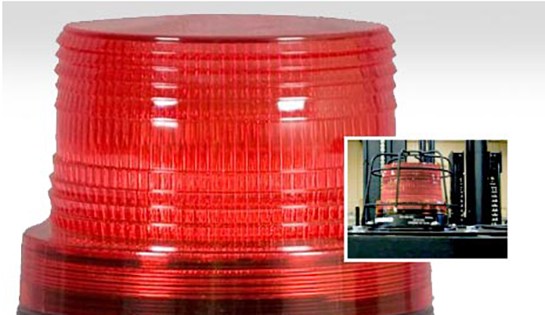

Warning Lights
The RSS Walkie Straddle Stacker is designed to provide excellent visibility and is equipped with a horn as standard equipment. However, environments with high levels of ambient noise may find it difficult to hear the horn when sounded. The warning light option may assist in making other workers aware of the RSS stacker truck in use.
Applications
-
Cold Storage
Refrigerated warehouses, blast freezers, and other cold storage applications require robust control systems. Raymond maintains its own cold storage test area to replicate the harshest conditions, testing and proving our systems in extreme cycles of freezing and thawing.
-
Narrow Aisle
With multiple combinations of heights, features, and capacities, Raymond 6310 Walkie Straddle Stackers provide narrow aisle storage facilities with superior versatility to improve the utilization of warehouse space.
-
Palletless Handling
Whether you’re moving carpeting, steel, or other palletless loads, Raymond 6310 Walkie Straddle Stackers can help you maximize space utilization, decrease damage to inventory, and increase productivity.
-
